RO4350b PCB 2-Layer Printed Circuit Board for Electronics Manufacturing

1 / 5

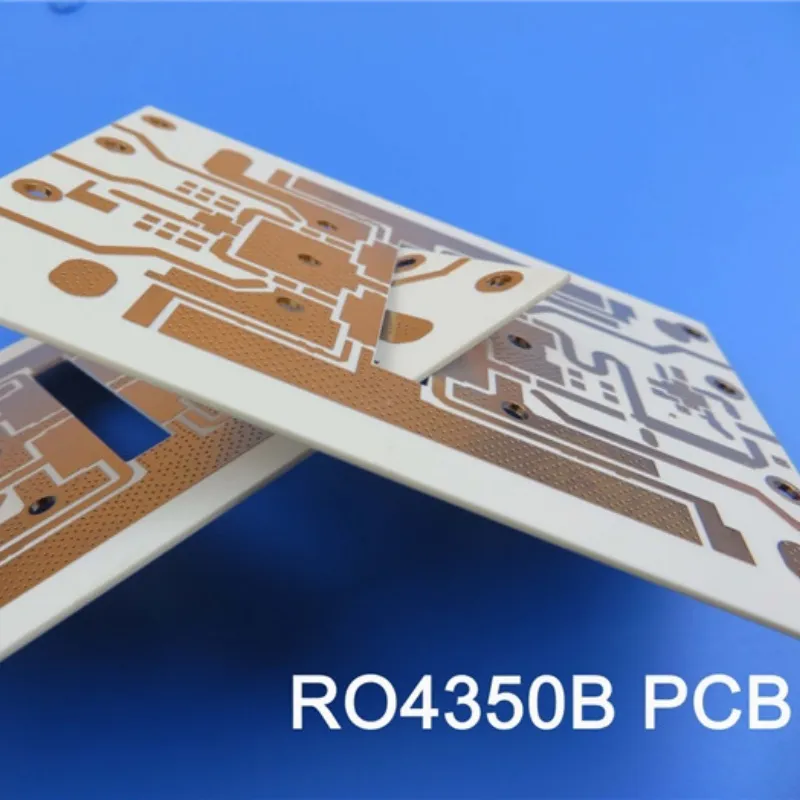

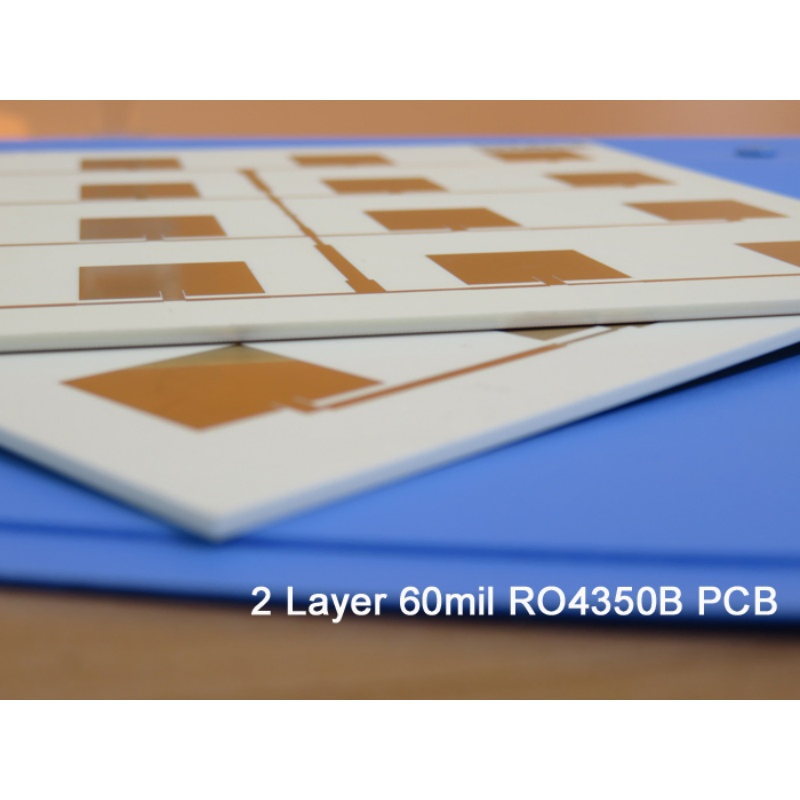

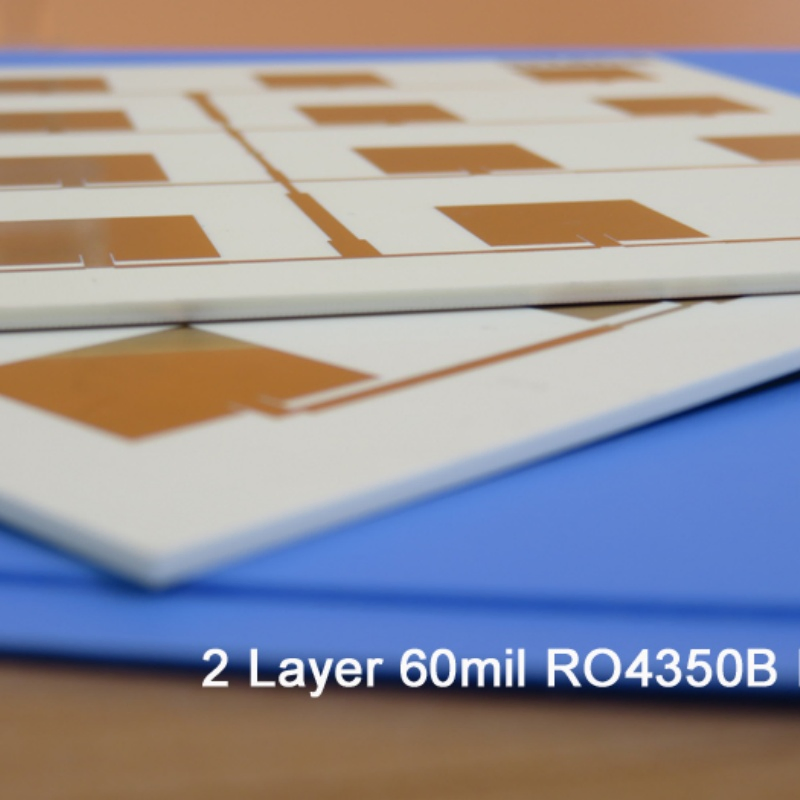

RO4350b PCB 2-Layer Printed Circuit Board for Electronics Manufacturing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BIC-1274-V3.0

Material

Rogers RO4350b Laminate

Application

Cellular Base Station Antennas

Flame Retardant

V0 Rating

Mechanical Rigid

Rigid PCB

Processing

Immersion Silver

Base Material

Rogers RO4350b Substrate

Board Types

Rigid PCB

Test Standard

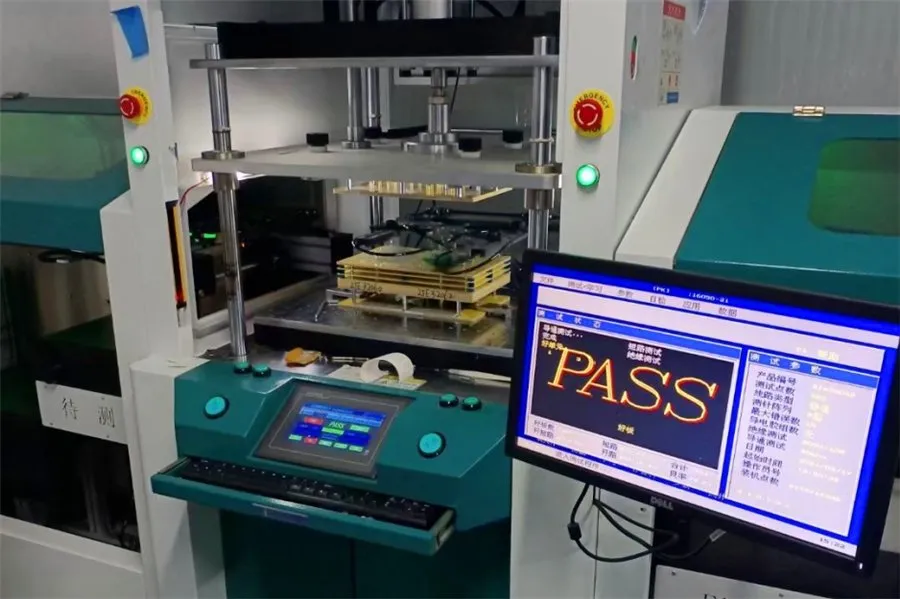

100% Electrical Test

Dimensions

45mm × 66mm ( ± 0.15m)

Product Overview

(Note: Custom PCBs are tailored products; images and specifications provided are for reference purposes.)

The RO4350B 0.25mm 2-layer PCB is an ultra-thin, high-frequency circuit board that perfectly balances RF performance with manufacturing cost-efficiency. Utilizing Rogers' proprietary woven glass reinforced hydrocarbon/ceramic material, this PCB delivers exceptional electrical characteristics (Dk 3.48±0.05) while maintaining processability similar to standard FR-4. The 0.25mm thin profile, combined with a copper-matched CTE, ensures high reliability for plated through-holes under demanding thermal conditions. Rated UL 94 V-0 with low water absorption (0.06%), it is the ideal choice for compact, high-power RF designs.

Technical Construction Details

Specification Item	Technical Detail
Base Material	RO4350B (Hydrocarbon/Ceramic)
Layers	2 Layers
Thickness	0.25mm (6.6mil core)
Min Trace/Space	8/7 mils
Min Hole Size	0.2mm
Copper Weight	1oz (35μm) outer layers
Via Plating	20μm
Surface Finish	Immersion Silver
Solder Mask / Silkscreen	None

Stackup & PCB Statistics

Layer Stackup:
• Copper Layer 1: 35 μm
• Rogers RO4350B Core: 0.168 mm (6.6mil)
• Copper Layer 2: 35 μm

Components

Total Pads

Thru Hole Pads

Top SMT Pads

Vias

Nets

Key Material Advantages

🛡️ Flammability

UL 94 V-0 certified for superior fire safety.

🎯 Dk Control

Tight Dielectric Constant control (±0.05) at 10GHz.

🌡️ Thermal Stability

High Tg (>280°C) and low Z-axis CTE (32 ppm/°C).

Typical Applications

5G Micro Antennas
Automotive Radar Modules
Satellite LNBs
RFID Systems
Wireless Infrastructure
Power Amplifiers

Why Choose This PCB?

Cost-Effective: Approx. 30% lower cost than PTFE alternatives.

Reliable: Proven stability in rigorous thermal cycling tests.

Precision: Capable of 8/7 mil fine trace/space designs.

Compact: Ultra-thin 0.25mm profile for space-constrained apps.

Standard Compliance: IPC-Class-2
Artwork Requirement: Gerber RS-274-X
Availability: Global Shipping

RO4350B PCB RF Circuit Board High Frequency PCB Thin PCB Microwave Laminate

Frequently Asked Questions

What are the primary benefits of using Rogers RO4350B material?

RO4350B offers excellent high-frequency performance with a low dielectric loss, tight Dk control, and thermal stability similar to FR-4, making it highly cost-effective for RF designs.

Is this ultra-thin 0.25mm PCB suitable for high-power applications?

Yes, the hydrocarbon/ceramic construction provides superior thermal conductivity compared to standard PTFE materials, allowing it to handle higher power in a slim form factor.

What surface finish is used on this RO4350B PCB?

This specific design uses Immersion Silver, which provides excellent conductivity and a flat surface for high-frequency signal integrity.

Can I use standard FR-4 assembly processes for this board?

Yes, one of the key advantages of RO4350B is that it can be processed using standard automated assembly and soldering techniques, unlike some other high-frequency laminates.

Does this PCB meet international quality standards?

Absolutely. The PCB is manufactured to IPC-Class-2 standards and is 100% electrically tested prior to shipment to ensure zero defects.

What file formats are required for ordering?

We primarily accept Gerber RS-274-X files, but can also work with PCB.Doc and other industry-standard design formats.
